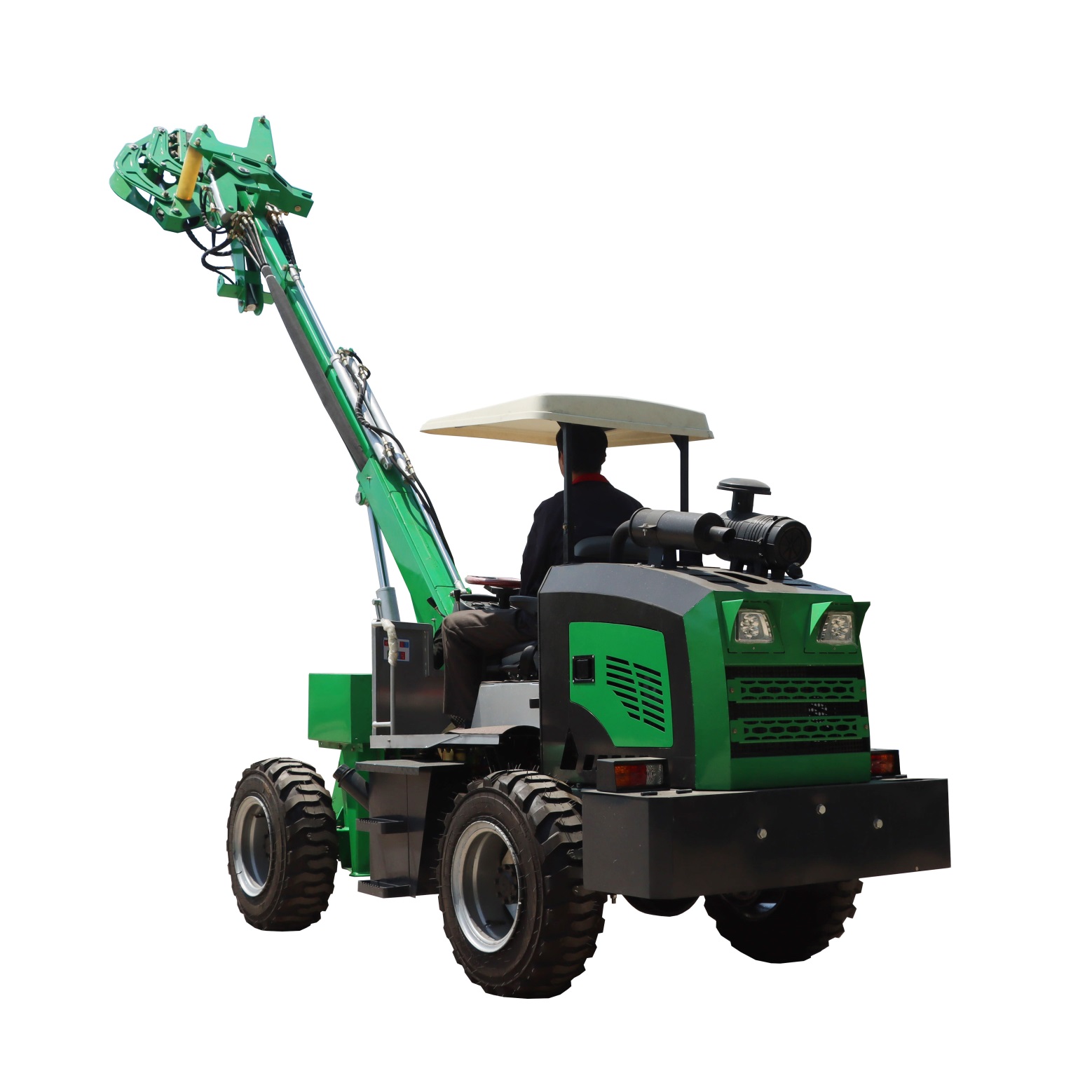

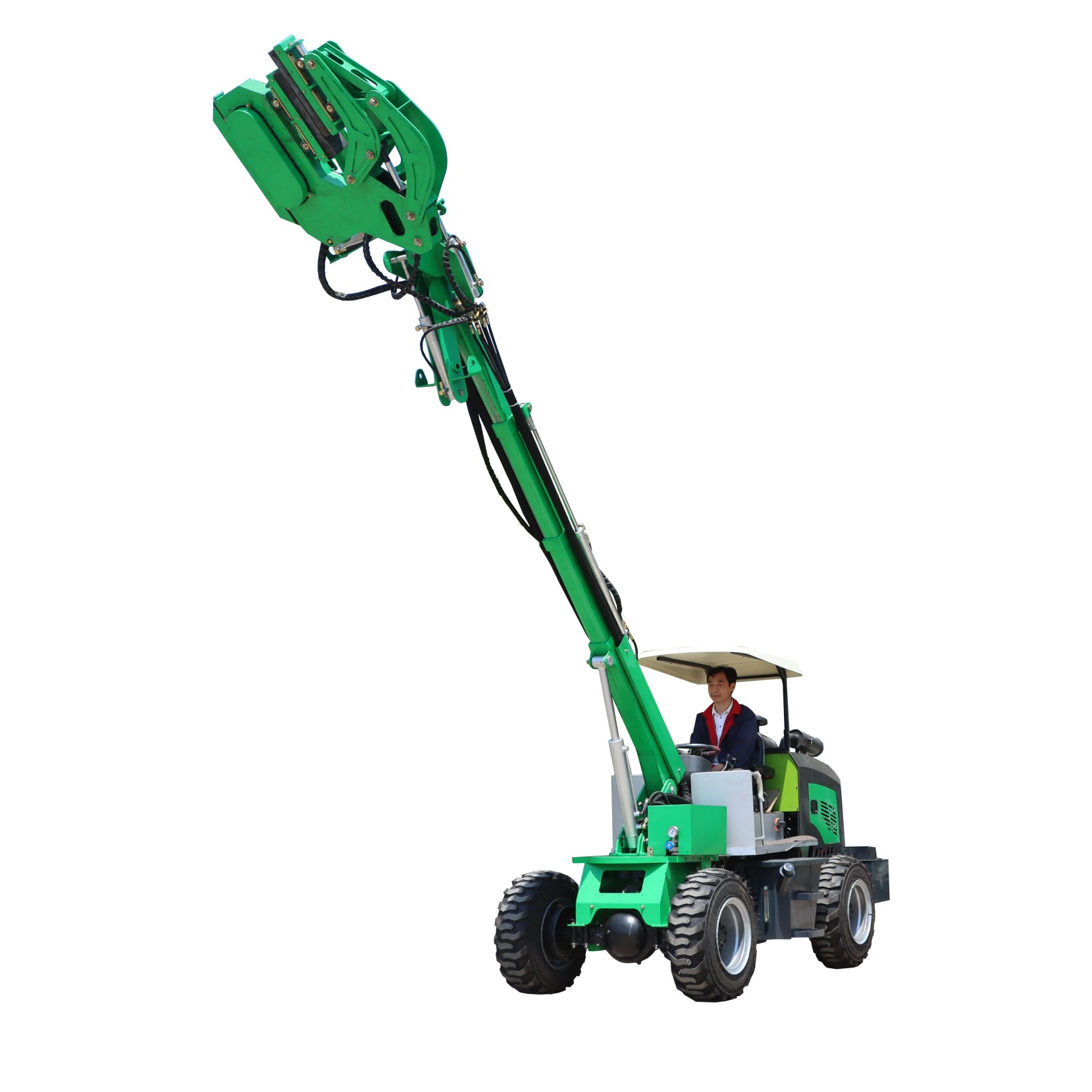

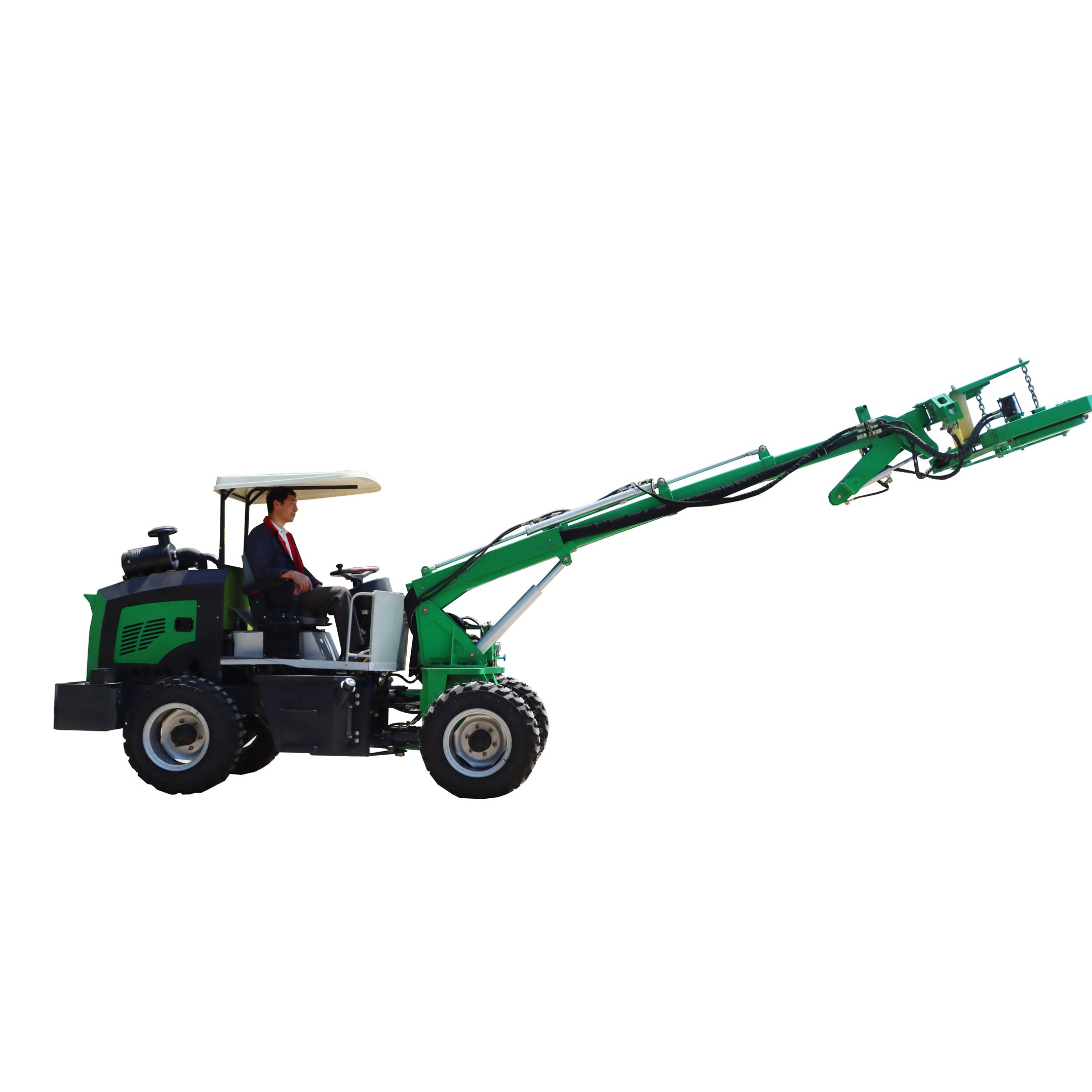

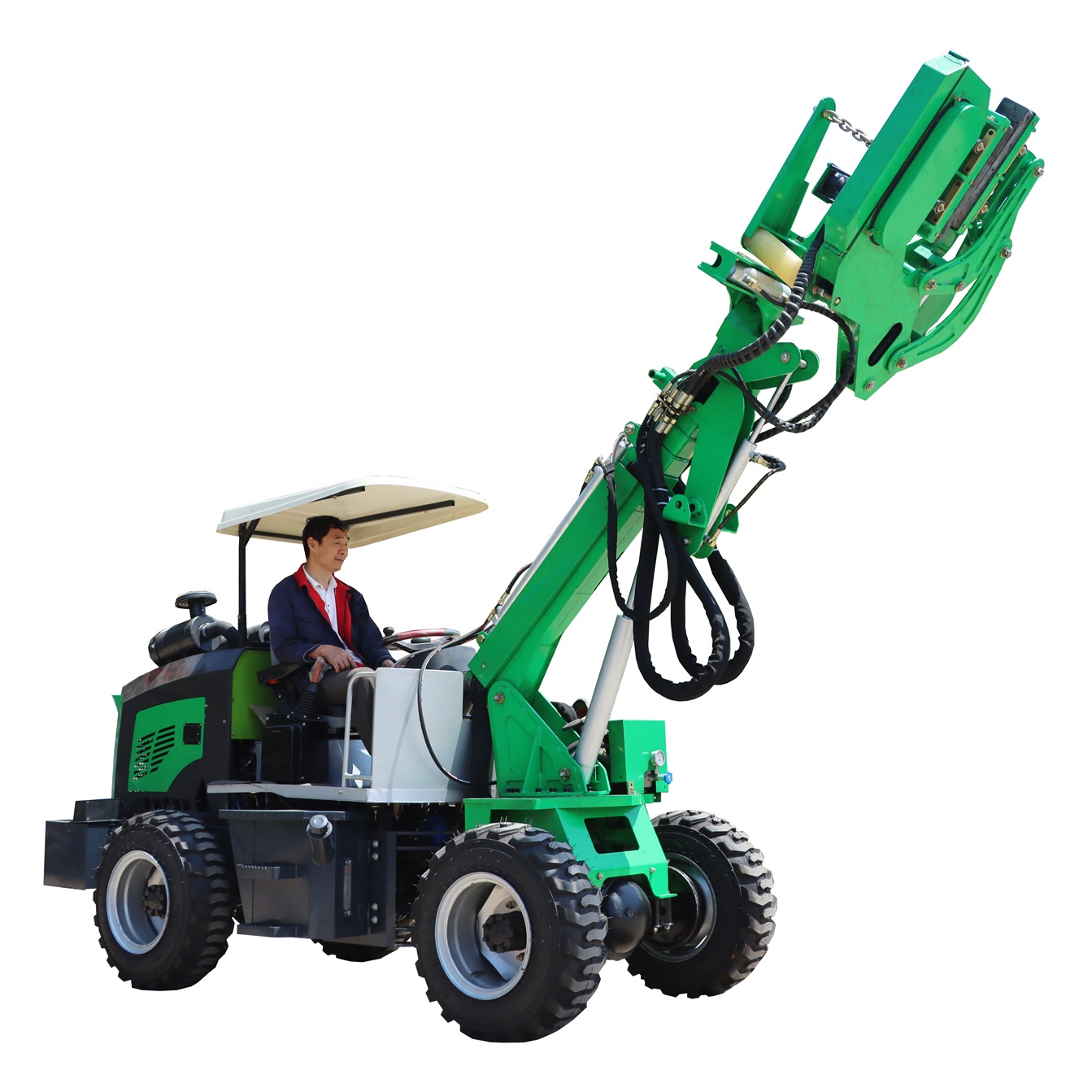

Wheel loader self-propelled type walnut vibrating picker harvester

Engine power: 36.8KW four cylinder diesel engine

Walking system: four-wheel drive articulated steering

Telescopic travel of vibration system: about 1-4m

Diameter range suitable for trees: 8-25 cm

Suitable for fruit trees: nut trees such as green root fruit, walnut, date palm, olive fruit, chestnut, pistachio or ginkgo.

Model	4YG-28
Engine power	Diesel engine 36.8kW
structural style	Self propelled type
Overall size	5400×1500×2200 mm
Head shaking stroke (extension)	≤2000 mm
Net weight	2230 KG
Max diameter tree	≤280 mm
Clamp amplitude	≤5 cm
Pliers vibration frequency	10-12 HZ
Work height	Max 4m
Suitable fruit trees	Nuts such as dried red dates, ginkgo, pecan and walnuts

Self-propelled olive vibrating picker main pictures

Self propelled hydraulic vibrating jujube receiver main pictures

Loader retractable hydraulic vibrating fruit picker main pictures

Loader Hazelnut vibrating picker main pictures

Pecan Fruit Hydraulic Vibration Harvester main pictures

high-altitude pecan Vibration Harvester main pictures

Self propelled type date palm high altitude picker machine main pictures
