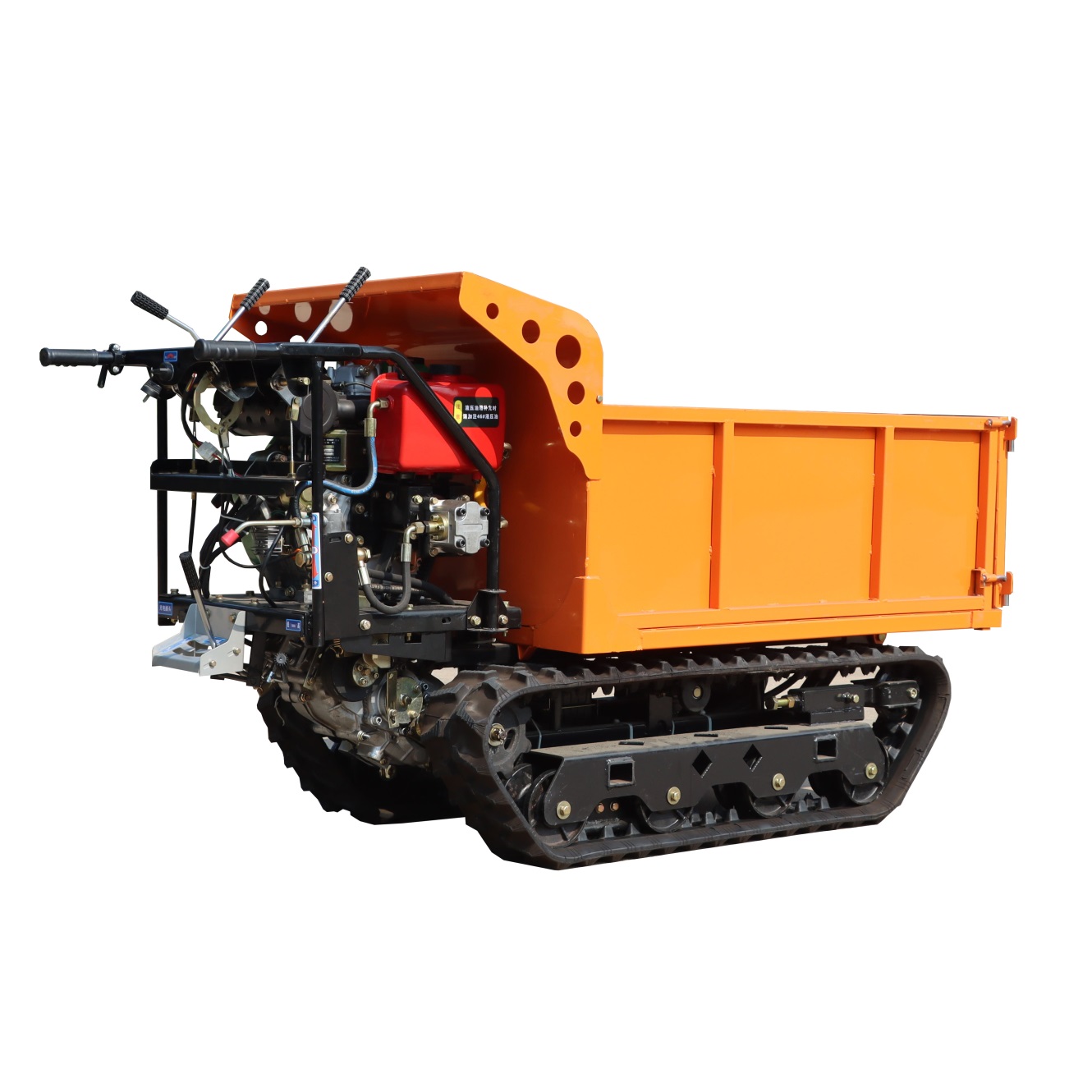

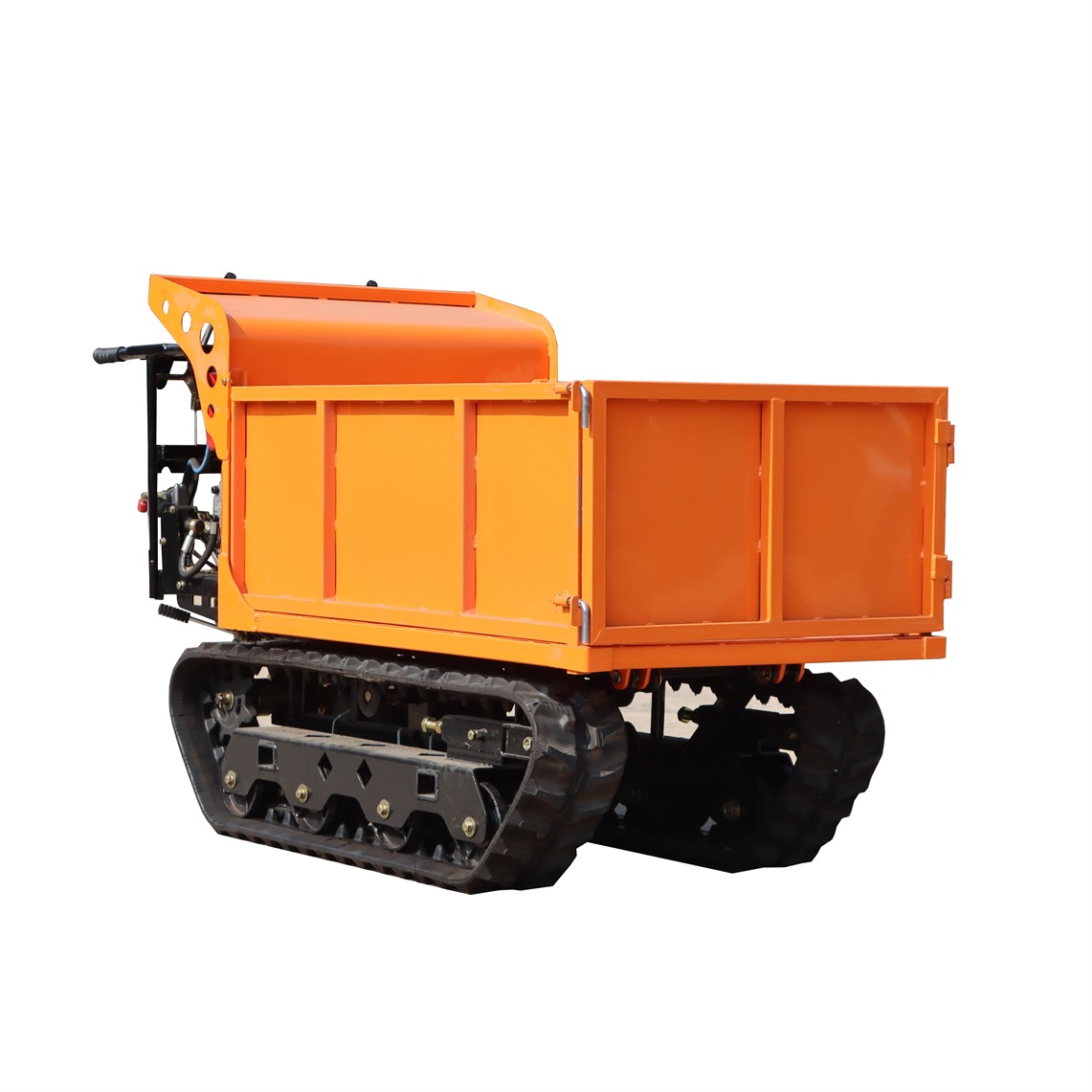

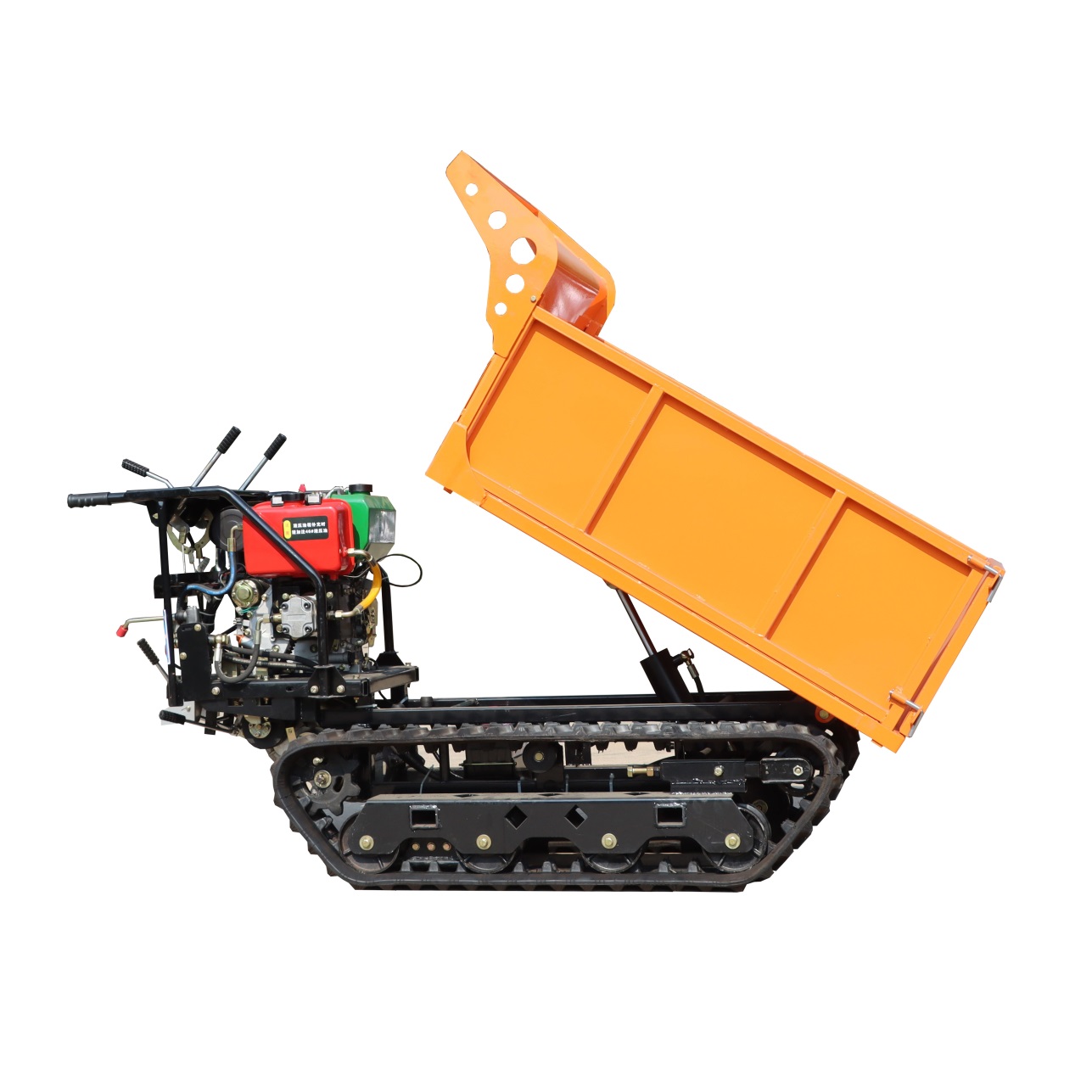

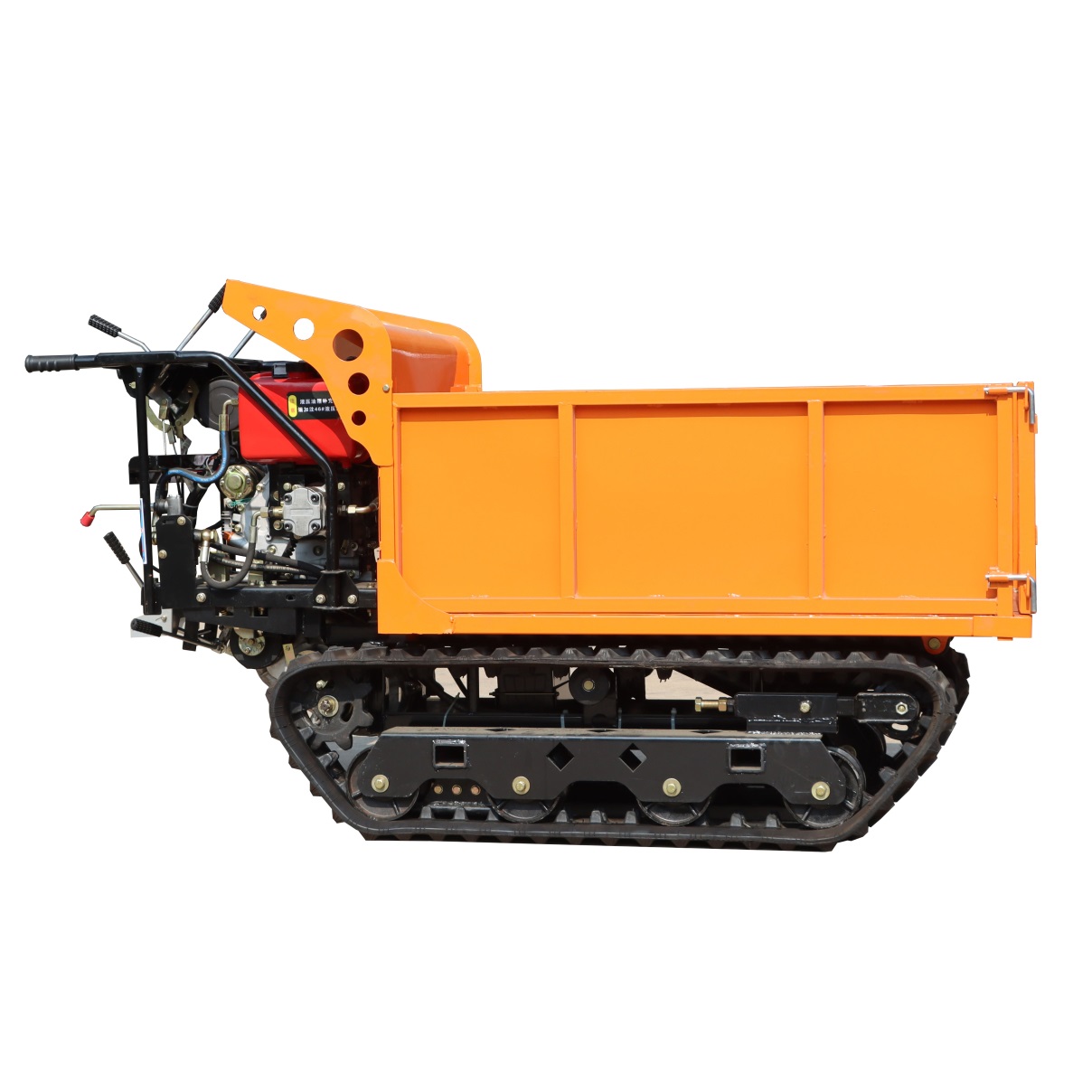

compact walk behind rubber track garden transporter trolley
Mini track diesel engine hydraulic dumper:
Engine: diesel engine at 10 hp
Gearbox: F3+R1X2 (high and low speed)
Load weight: 800-1000KG
Operation mode: manual.
main features:Compact structure, good stability, crawler walking and small turning radius.
Way of walking: Manual control self propelled.
|
Model |
WL-1000 |
|
Engine |
Changfa 1 cylinder diesel engine186F 6.6kw/10HP |
|
Pedrail ground length |
1100 mm |
|
Pedrail width |
200/230 mm |
|
Start type |
electric |
|
Loading weight |
1000 KG |
|
Gear box |
3+1*2 （High and low） |
|
Drive speed |
F1.8-6.1/R1.8-3.6 km/h |
|
Overall size |
2120 x 800 x 1200 mm |
|
Container size |
1300 x 800 x 450 mm |
|
Net weight |
550 KG |
|
Ground distance |
160 mm |
|
Climb angle |
20 degree |
