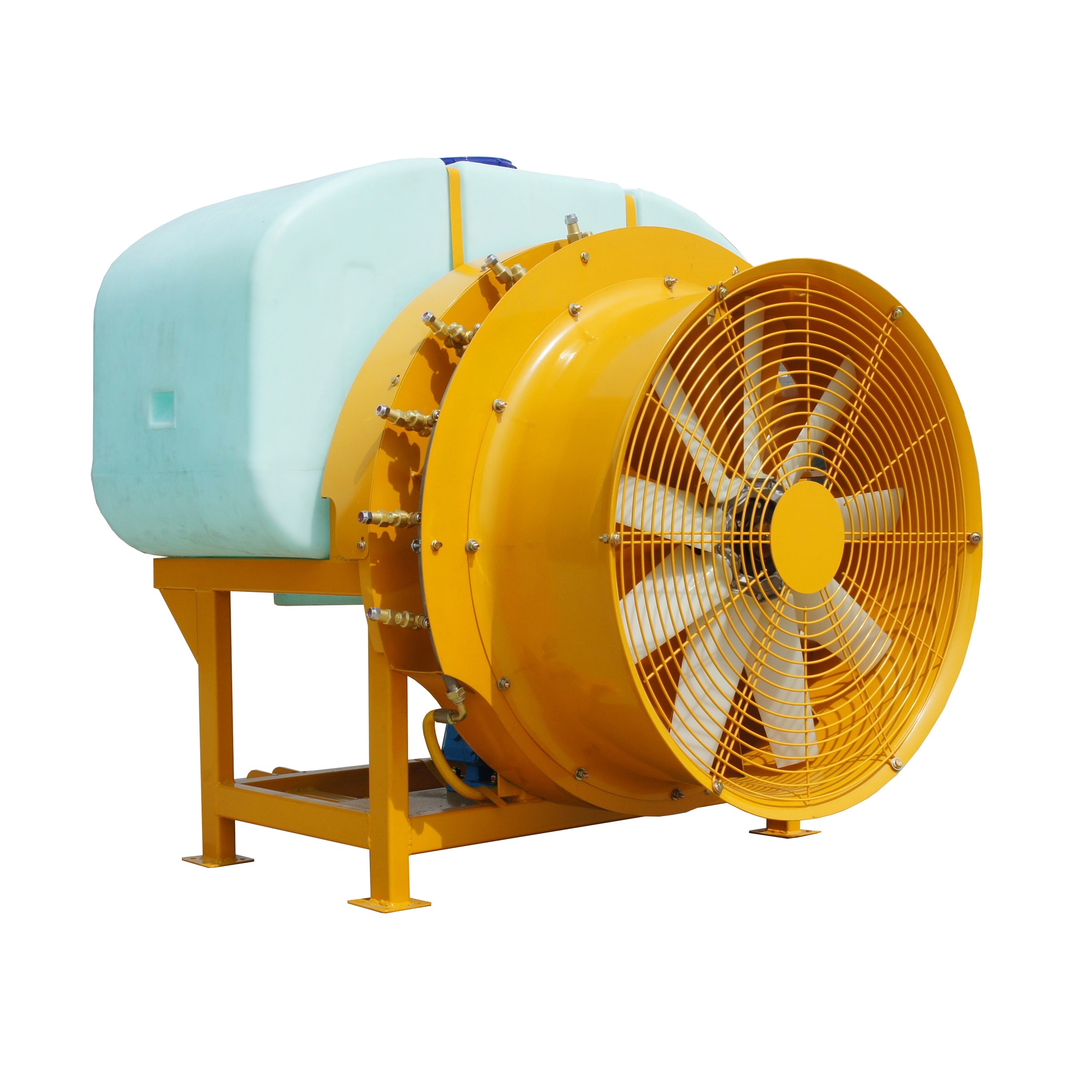

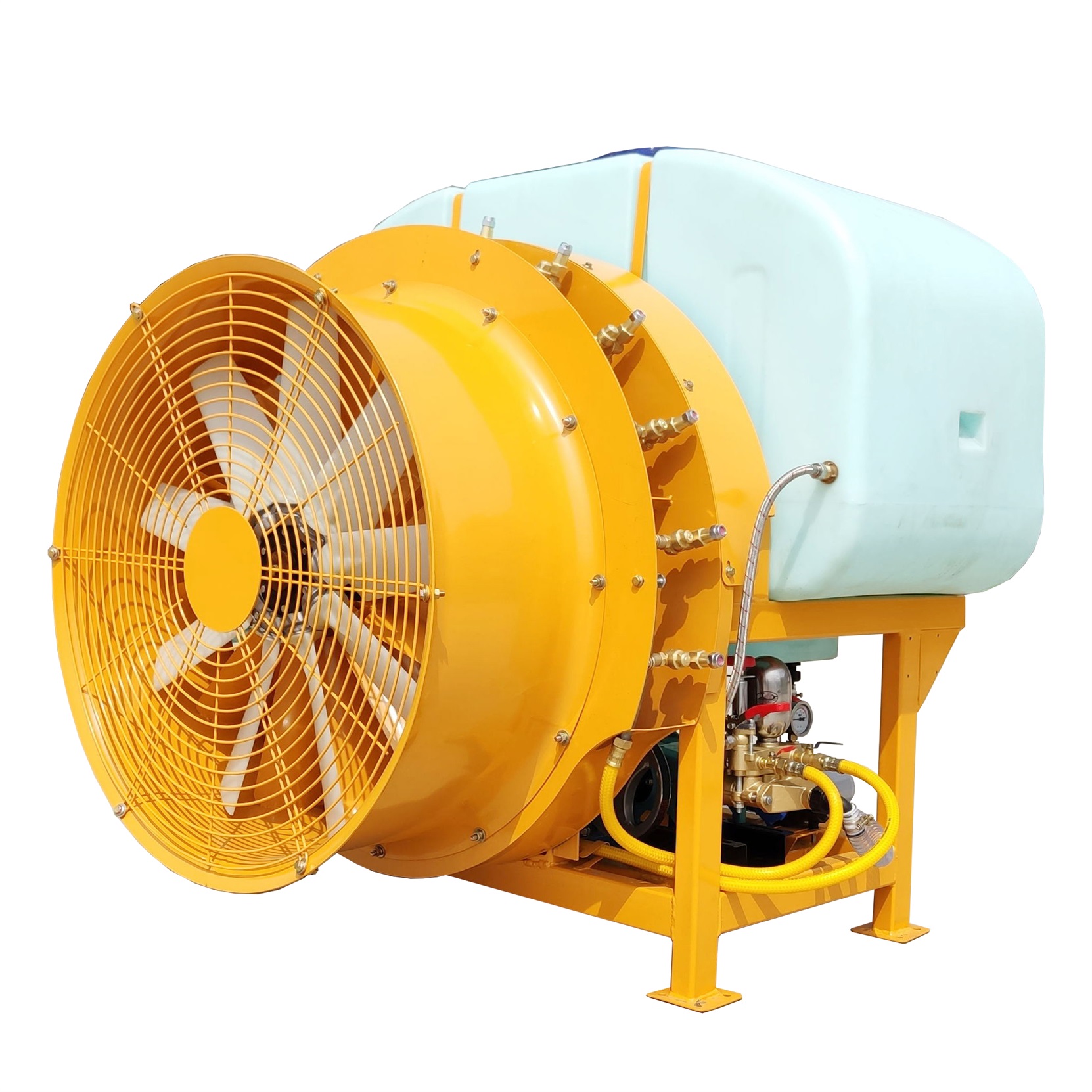

tractor mounted garden air assisted atomizer
Tractor mounted garden air blast power sprayer:
Tank capacity: PE material 360/400/500L
Matching tractor: tractor power from 40-100HP
Matching sprayer pump: three cylinder plunger pump
Matching gearbox: rate 1:4 Speed increasing box
Matching sprayer nozzle: Imported quality copper body ceramic double jet nozzle
Sprayer fan diameter: 800 mm
Sprayer height: 2-5 m According to different fruit trees
Applicable range: peach trees, apple trees, vineyards, vegetable gardens, orchards and so on.
Model 3WFX-500
Overall size 1300×1300×1300 mm
Tank 500 L
Work height ＞ 6-8 m
Work width ＞ 16 m
Sprayer pump Three cylinder plunger pump
Pump flow 15-32 L/min
Fan diameter 800 mm
Tractor power ＞50 HP / 540 r/minu
Sprayer nozzle 10-12 pc
Spray control type Sectional Control/Independent Switch
Liquid mixing type Reflux stirring/jet stirring
Work pressure 0.3-2.5 Mpa
Net weight 370 KG
Gear box Autonomous design
