Pipe Rail Trolley for Greenhouse main pictures

greenhouse mobile hydraulic lift truck main pictures

greenhouse Vertical lifting trolley For Strawberry main pictures

greenhouse mobile fruits and vegetable picking main pictures

greenhouse pipe rail trolley main pictures

greenhouse railway pipe trolley main pictures

greenhouse railway work platform main pictures

greenhouse railway harvest trolley lift height 3m  main pictures

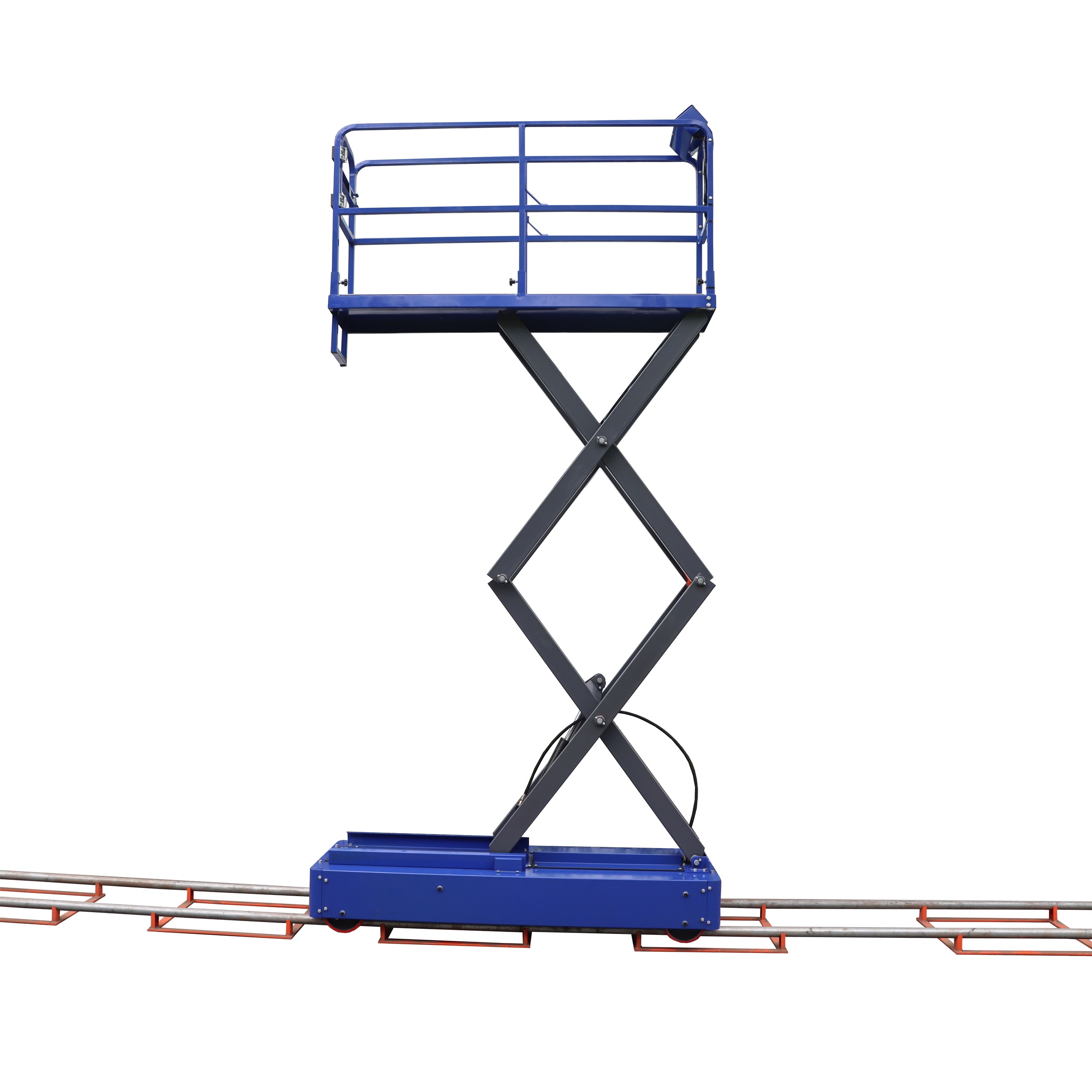

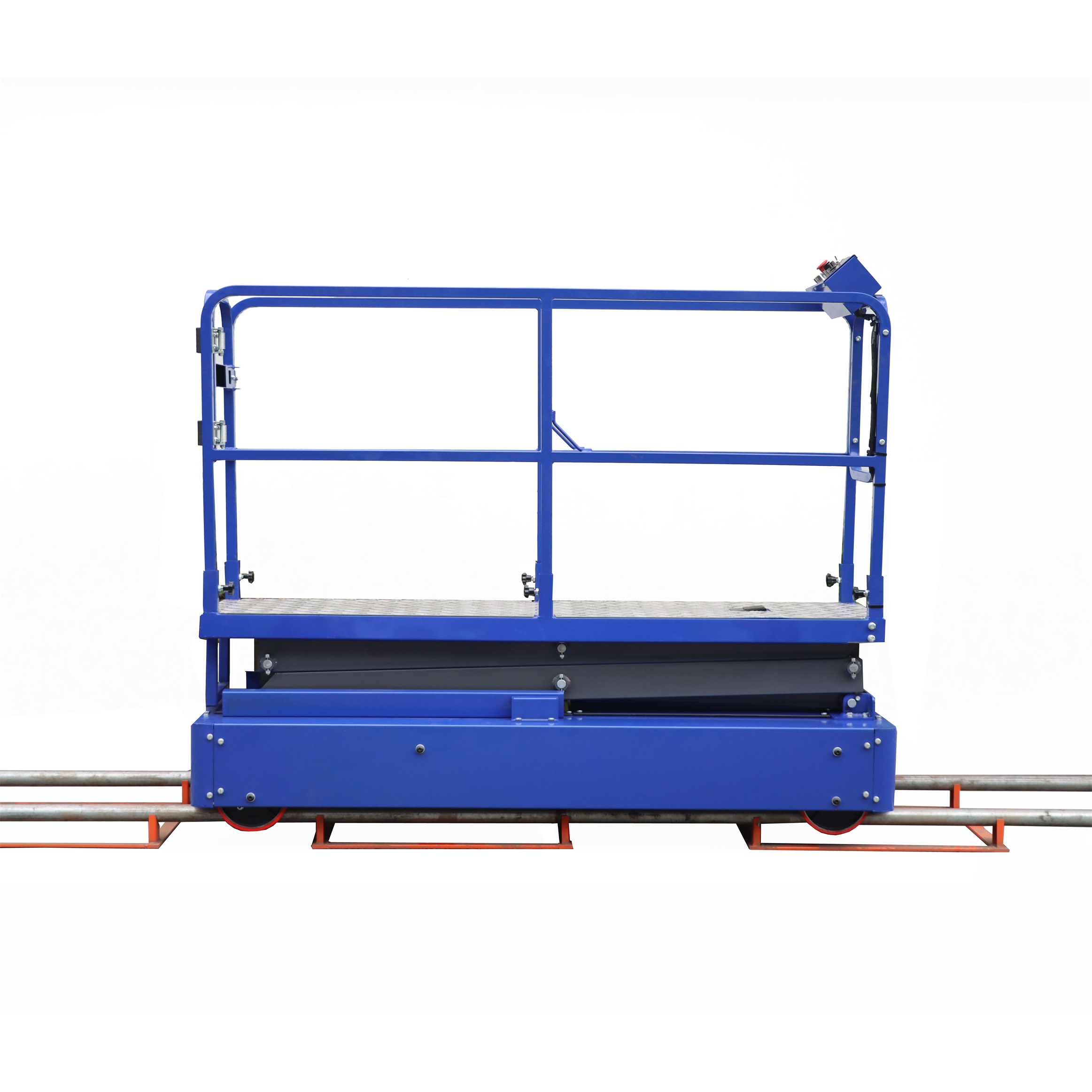

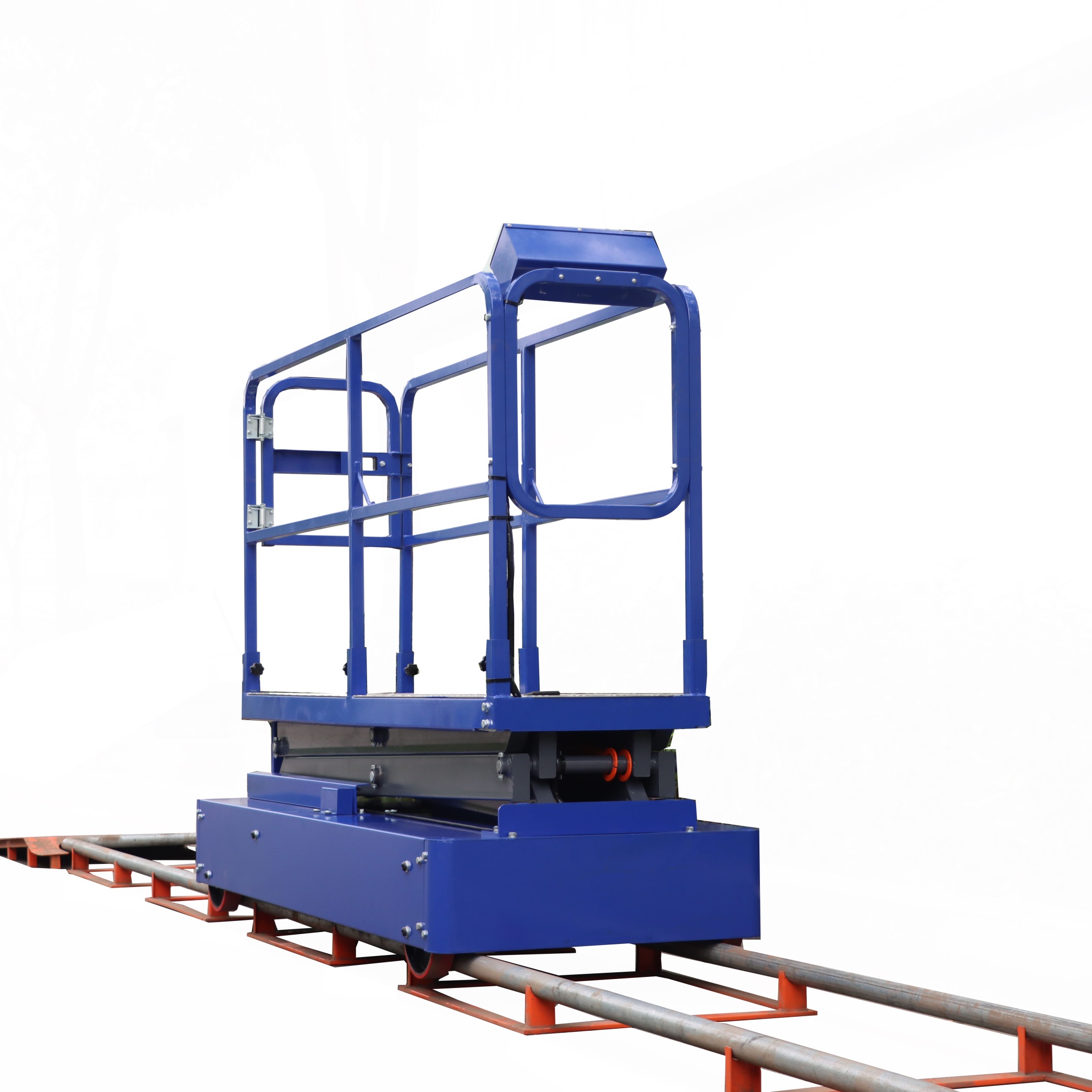

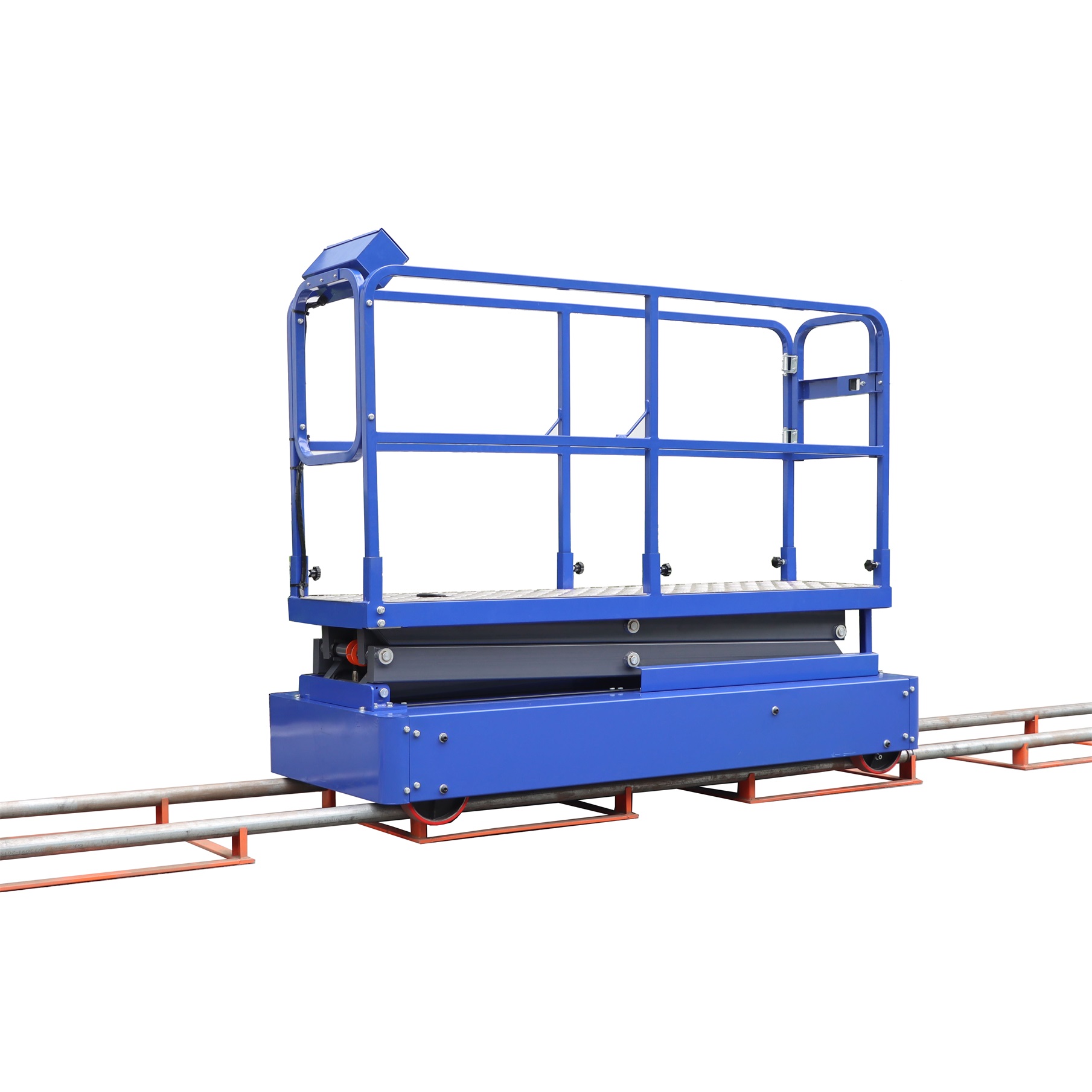

greenhouse pipe rail hydraulic scissor lift trolley main pictures

Model    WL0.2-3
Max work height    3000 mm
Mini platform height    630 mm
Platform size    1910x500 mm
Platform rated load    200 KG
Rise /Falling time    23 / 27 second
Mini ground clearance    75 mm
Battery     2*12V / 80Ah
Lifting / Traveling motor    24V / 2.2 kw / 24V / 0.5 KW
Driving speed    0-3.5 Km/h
Battery charger    24 V/15A
Overall length    1936 mm
Overall width    770  mm
Wheel specification    diameter 200 mm
Overall height    1685 mm
Overall weight    490 Kg
Track center distance    550 mm
Track diameter / thickness    48 mm/ 2.5-4.0
Endurance time    3-6h
