Tractor trailed type garden air blast power sprayer:
Tank capacity: PE material 800L/1000L/1600L/2000L
Matching tractor: tractor power from 50-150HP
Matching sprayer pump: 4 cylinder/ 6 cylinder diaphragm pump
Matching gearbox: rate 1:4 Speed increasing box
Matching sprayer nozzle: Imported quality copper body ceramic double jet nozzle
Sprayer fan diameter: 800 mm
Sprayer height: 2-5 m According to different fruit trees
Applicable range: peach trees, apple trees, vineyards, vegetable gardens, orchards and so on.

Model    3WFQ-1000
Overall size    2150x1450x1450 mm
Tank capacity    1000 L
Tractor power    ＞60HP
Work height    ＞4-6m
Work width    ＞10-15m
Sprayer pump    4 cylinder/6cylinder diaphragm pump
Flow    15-60 L
Fan diameter    800 mm
Tyre     Ordinary tire
PTO drive speed    540r/min
Spray control type    Section control / independent switch
Nozzle quantity    Copper ceramic nozzle 10-14pc
Liquid mixing type    Reflux / jet mixing
work efficiency    0.5 ha
Filter unit    Two-stage filtration

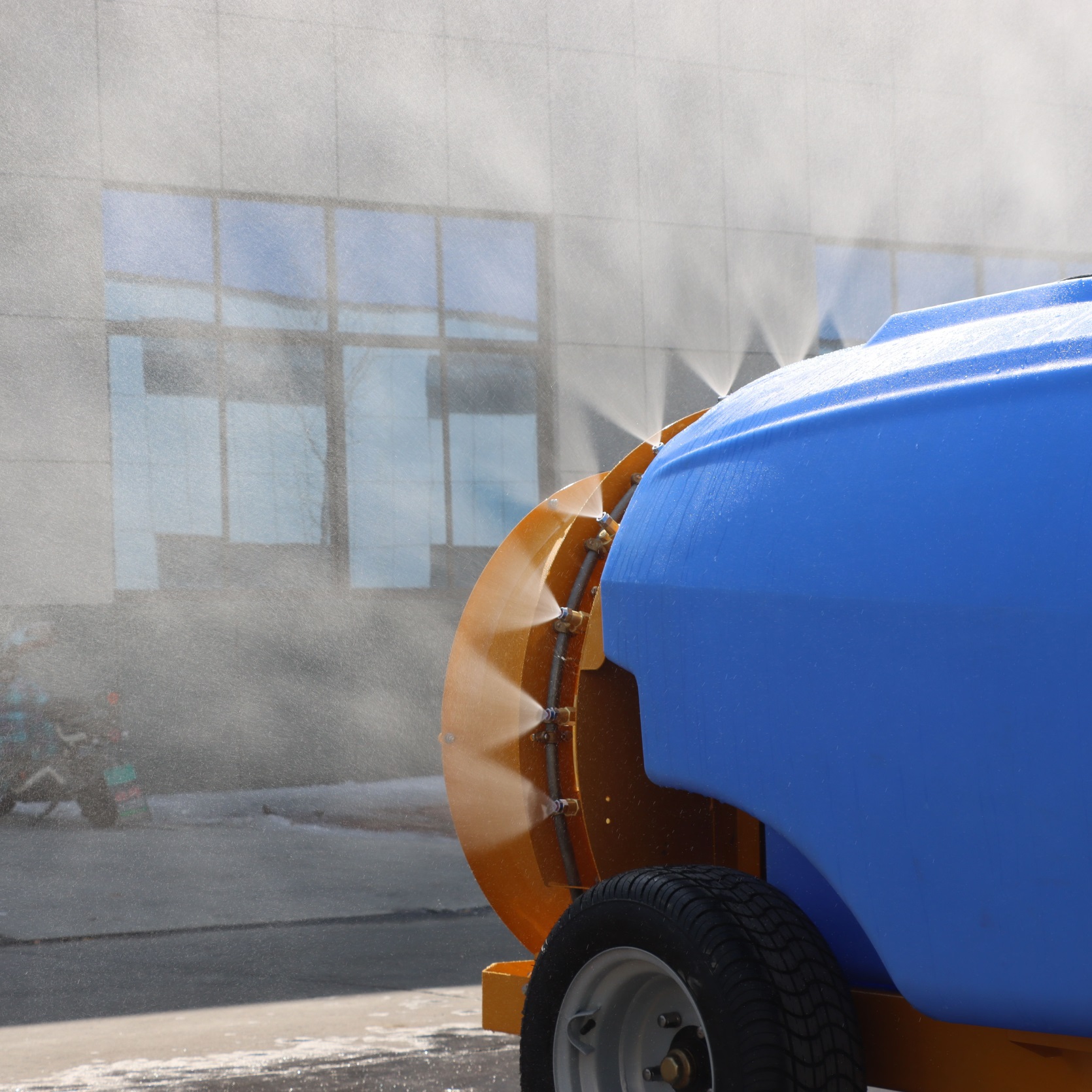

tractor pull-type orchard wind blast sprayer main pictures

tractor pull-type garden air blast atomizer main pictures

tractor PTO drive garden axial flow sprayer main pictures

tractor PTO drive orchard blower sprayer main pictures

tractor trailer type garden sprayer main pictures
