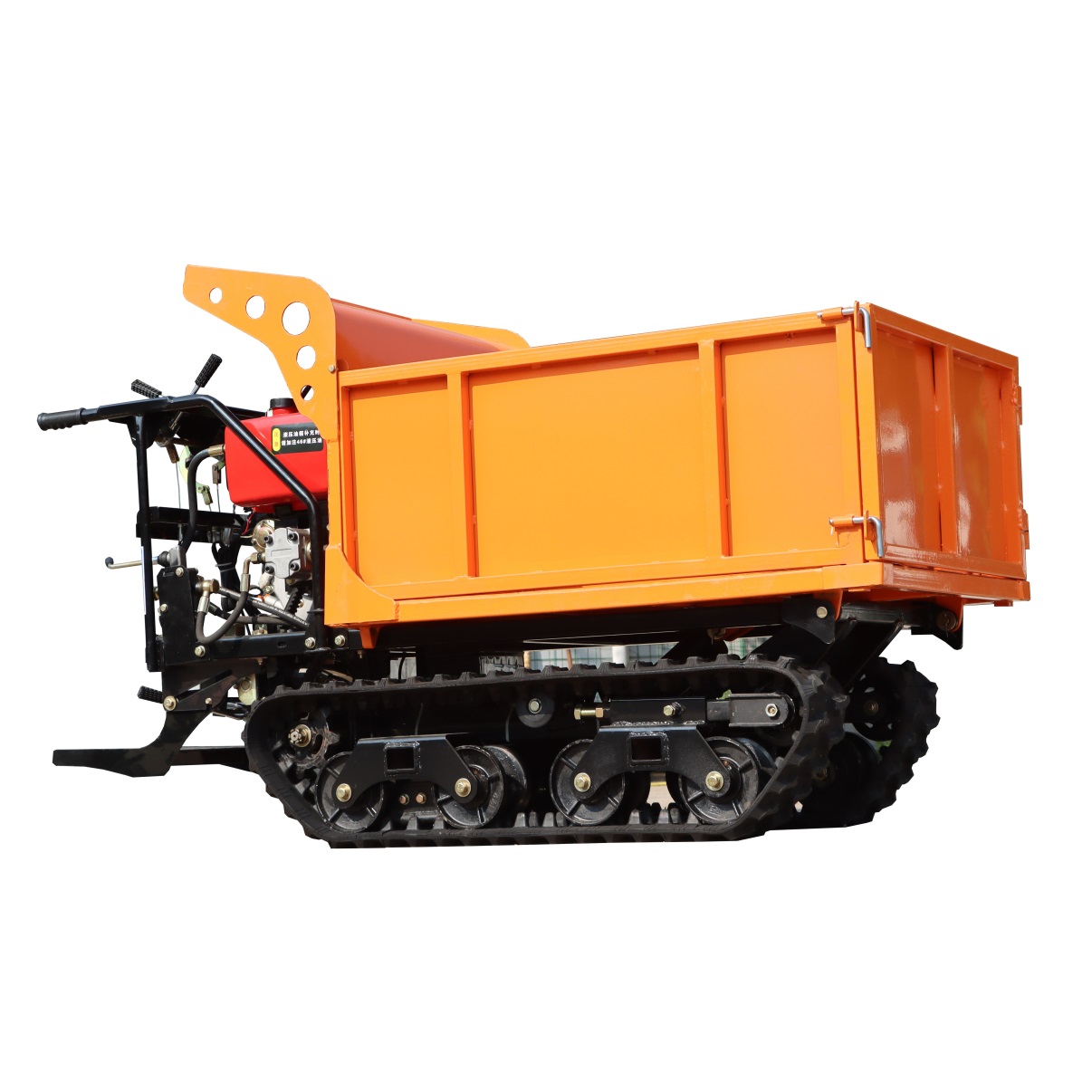

Mini crawler type garden truck dumper trolley
Mini crawler type garden truck dumper:
Engine: Changfa diesel engine 10HP
Loading weight: 500 KG
Transmission: 3+1*2 (High and lower speed)
|
Model |
WL-500 |
|
Overall size |
1960*720*1150 mm |
|
Net weight |
390 KG |
|
Engine model |
Changfa diesel engine |
|
Engine power |
6.8KW /( 10 HP) |
|
Container size |
1150x700x500 mm |
|
Loading weight |
Max 500 KG |
|
Gear box |
3+1*2 |
|
Dump type |
hydraulic |
|
|
|
|
Start type |
Electric |
|
Pedrail length |
800 mm |
|
Pedrail width |
180 mm |
|
Work speed |
F1.8-6.1/B1.8-3.6 km/h |
|
Ground distance |
140 mm |
|
Plywood package size |
2100 * 940 * 1420 mm |
|
Gross weight |
450 KG |
