4WD Mountain Orchard transporter tractor

Engine: diesel engine 20HP

Gearbox: 3+1*2

Loading weight: 2000 KG

货号：

2018-9-15

Model	WL-2000 without sprayer
Name	Mountain 4WD transport vehicle
Engine	Changchai diesel engine 18KW/2200r/min
Ground distance	20 cm
Net weight	1500 kg
Loading weight	1000-2000 kg
Axle distance	2165 mm
Wheel distance	1200 mm
Clutch type	Single, dry, constant, hydraulic joystick
Engine and gear box link type	Belt
Main gear box	4+1 Gear type high and low speed
auxiliary gearbox type	Gear type
part-time case	Chain type inlay actuator
Axle	212/212
Front axle	Front axle balance suspension device
Tyre size	Front/Rear 6.00-14
Steering type	Hydraulic
Brake system	Double pipe hydraulic brake
Parking brake system	Mechanical rear wheel brake
Overall size	3455x1430x2220 mm
Container size	2360x1360x 450 mm

Transfer case: chain type tooth transfer case, speed ratio: 1.000.

Front axle: integral axle housing steering axle, speed ratio: 5.125.

Rear axle: integral axle housing, speed ratio: 5.125.

Suspension: Longitudinal semi-oval leaf springs

Axle: Welded structure composed of section steel and channel steel.

Wheels: Hub Specifications: Front/Rear 4.00E-12

Steering structure: steering wheel steering

Brake system: service brake form: dual-line hydraulic brake; parking brake form; mechanical rear wheel brake

Cab: Convertible structure

Cargo box: Openable metal structure

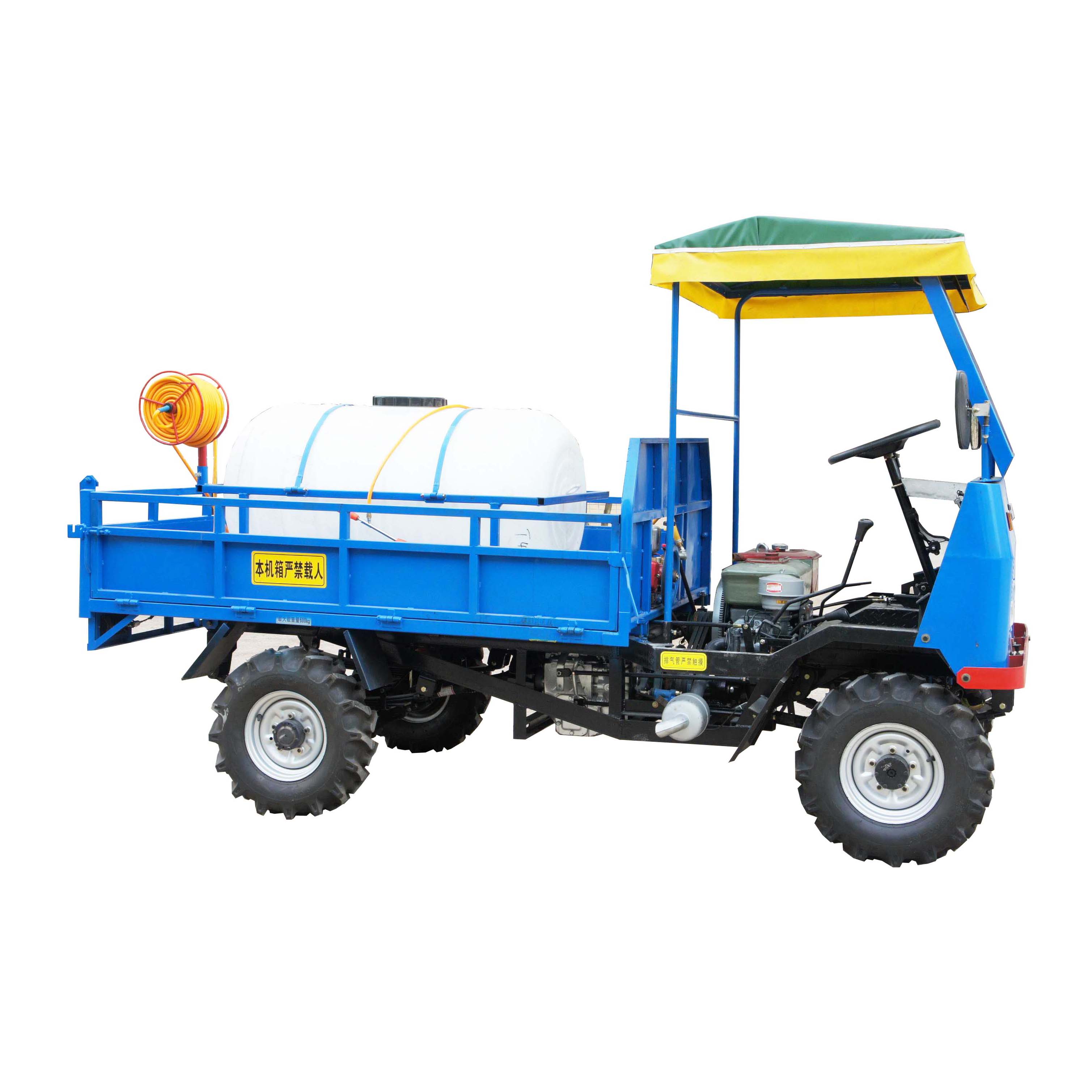

4WD Mountain Orchard transporter tractor main pictures
