Tractors mounted rice field ridge making machine ZGJ-300H
Configuration tractor: 80-120HP.
Ridger height: 30-35cm,Top width 30cm，bottom width70cm .
Drive type: drive shaft+gear box drive.
|
Model |
ZGJ-300H |
|
Name |
Single side ridging making machine |
|
Work speed |
1200-2000 m/h |
|
Configuration tractor |
More than 29.4 kw (40HP) Tractor |
|
Transmission type |
tractor PTO / shaft drive |
|
on-link mode |
After the tractor mounted |
|
Height adjustment |
After the tractor mounted / hydraulic cylinder adjust |
|
Oil consumption |
≤3kg/km |
|
Overall size |
Length 950mm |
|
|
Width 2040 mm(working) width1150 mm (moving) |
|
|
Height 1000 mm |
|
Net weight |
400 KG |
|
Speed |
240-280 r/min |
|
Optimum operation conditions |
The soil moisture content 30% - 60% |

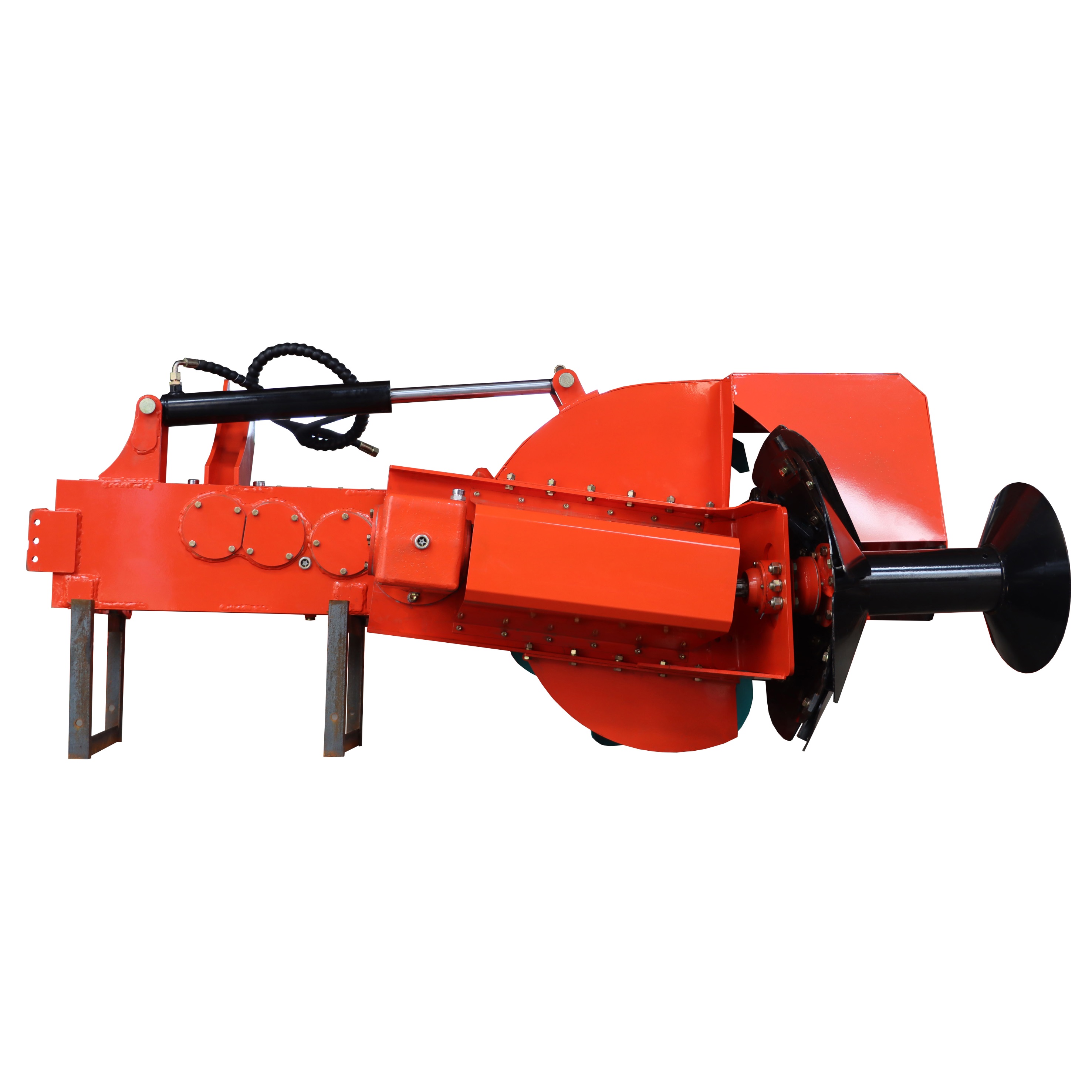

Tractors mounted rice field ridge making machine ZGJ-300H Main pictures

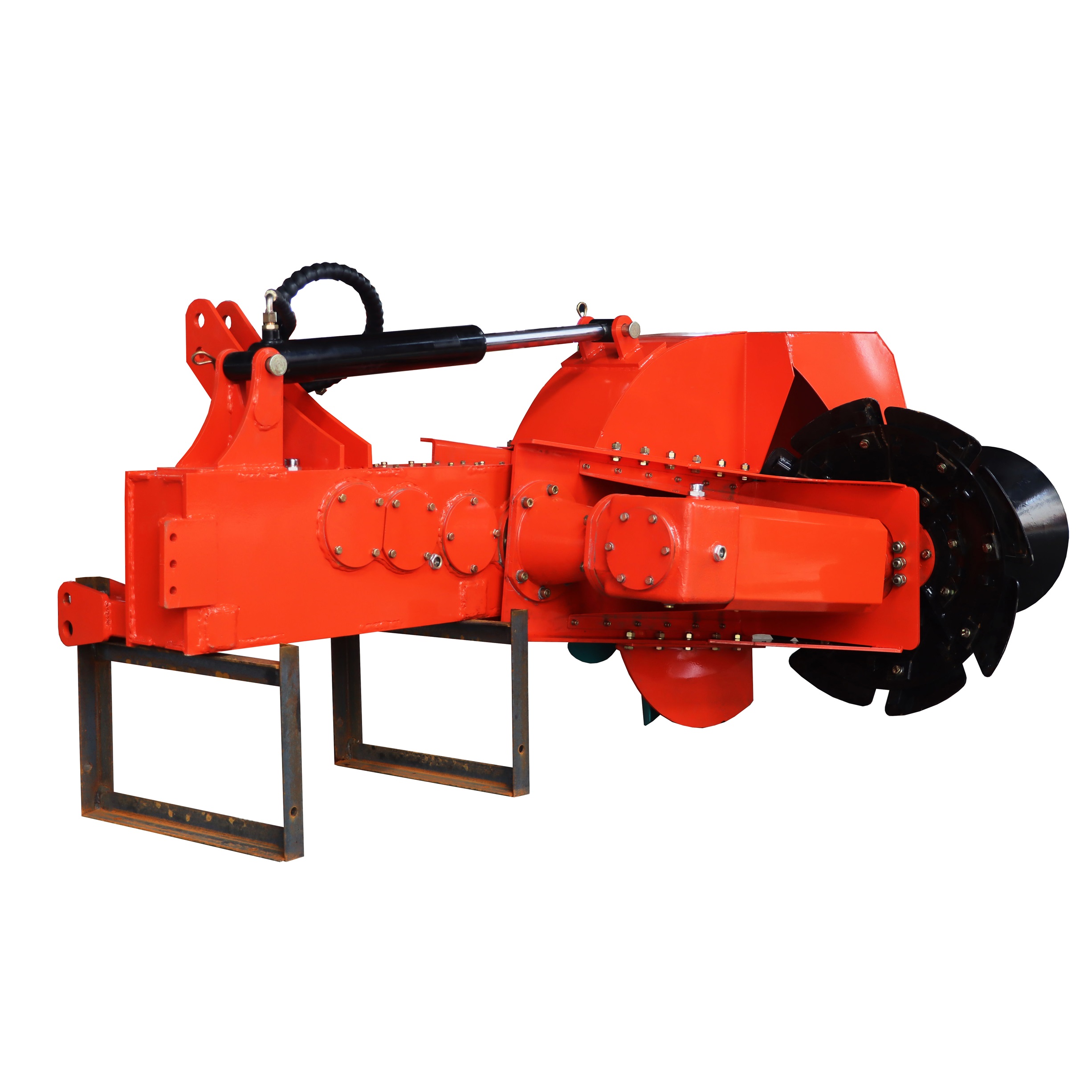

Tractors mounted rice field ridge making machine ZGJ-300H Main pictures

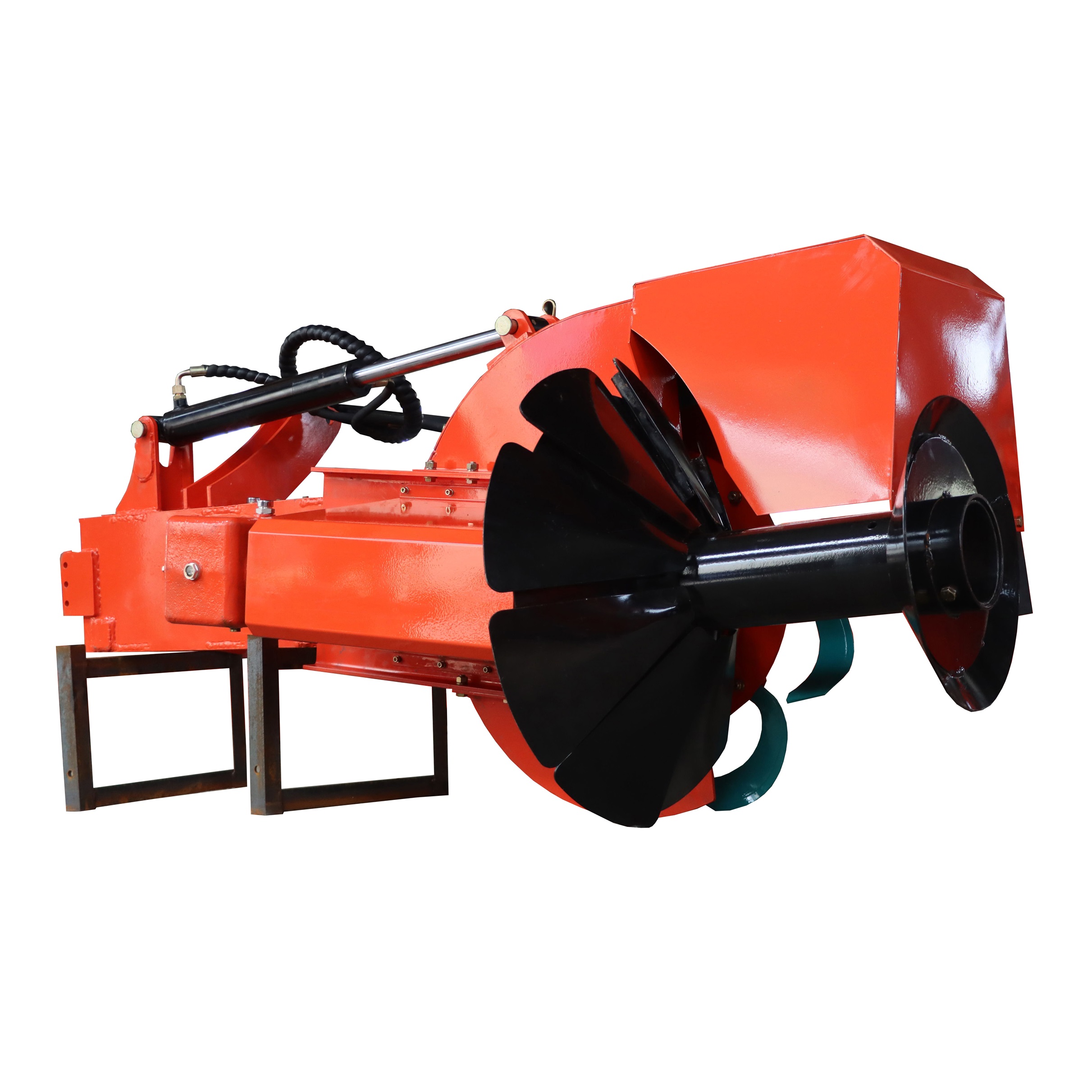

Tractors mounted rice field ridge making machine ZGJ-300H Main pictures

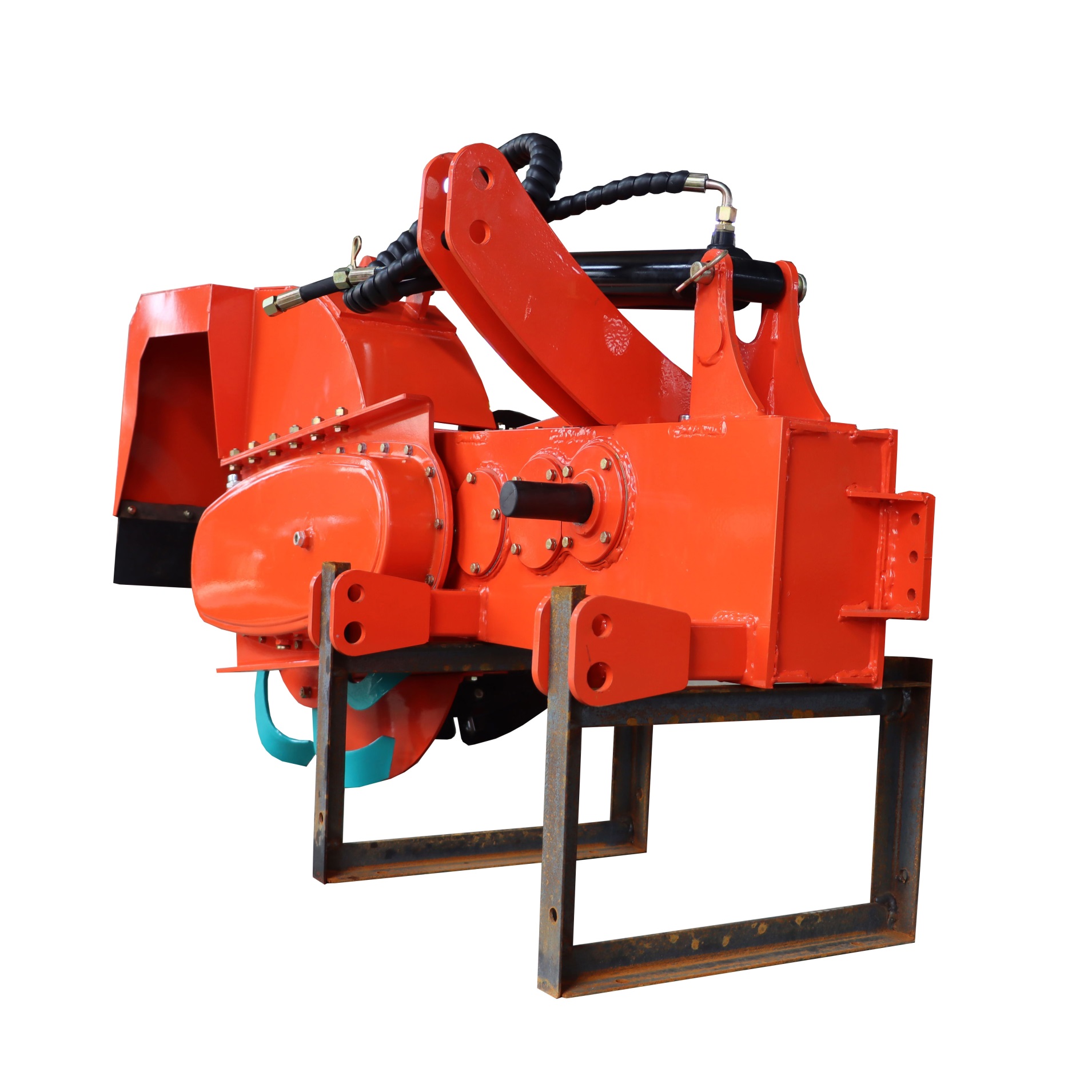

Tractors mounted rice field ridge making machine ZGJ-300H Main pictures
